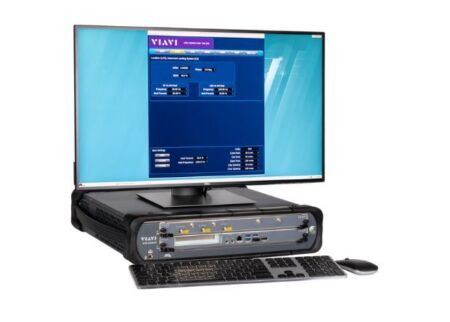

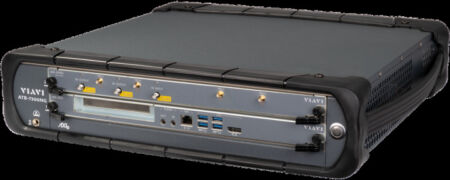

VIAVI ATB-7300NG Avionics NAV Bench Test Set

Bench Top Signal Generator for OEMs and MRO Return-to-Service to confirm the performance of FM, ILS LOC and GS, VOR, ADF and Marker Beacon.

The ATB-7300NG Navigation Test Set is based on the new VIAVI AXIe Avionics Test Bench (ATB) platform. The ATB platform is a powerful cutting-edge design tailored to end users from OEMs to repair shops that can be used for all phases of the avionics lifecycle: product development, design verification and validation, certification, manufacturing, return-to-service, and service/calibration.

Key Features:

• Legacy command set compatibility offered for the following products: NAV-2000R, ATN-7300 and the Collins 479S-6A
• Ethernet remote control interface offered on the ATB-7300NG
• VHF Generator – Provides control of modulation frequency, modulation depth (up to 3 sources), SELCAL tones, frequency and tone sequences.
• ILS/Localizer Generator – Provides control of 90 Hz and 150 Hz tone frequencies, modulation depths, left/right DDM and IDENT settings, including Morse code.
• ILS Glide Slope Generator – Provides control of 90 Hz and 150 Hz tone frequencies, modulation depths, up/down DDM
• VOR Generator – Provides control of 30 Hz Var/Ref and 9960 Hz tone frequencies, modulation depths, 9960 Hz deviation, VOR bearing, to/from and IDENT settings
• ADF Generator – Provides control of modulation frequency, modulation depth and IDENT settings
• Marker/Beacon Generator – Provides selection of Outer, Middle and Inner marker beacon tones and control of tone frequencies, modulation depth and IDENT settings
• Basic Graphical User Interface (GUI) allows access to test features

For Testing:

• VHF Generator
• ILS/LOC Generator
• ILS Glide Slope Generator
• VOR Generator
• ADF Generator
• Market/Beacon Generator
