VIAVI ADS B INTEGRITY Test Application Produktbild

Avionics

VIAVI ADS-B INTEGRITY Test Application

Performance testing of ADS-B Out equipment

Let us know your challenge and together we will find the perfect solution for you. Our experts will be happy to help you.

Produkt anfragen

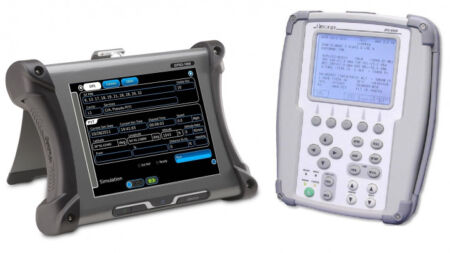

The new application controls VIAVI’s IFR6000 or IFR6015 transponder test sets and GPSG-1000 position simulator to support Supplemental Type Certification (STC) and approval testing for ADS-B system installations according to FAA Advisory Circular AC 20-165B.

For R&D and factory testing, the application controls the Viavi IFF-45TS / A MK XII test set and the GPSG-1000 for ADS-B out performance. A full, detailed ADS-B Out compliance report in FAA format, including a measurement for total latency, can be generated and evaluated directly with pass/fail criteria.

  • Verify ADS-B equipment installation
  • Complete AC 20-165B test, fast and with automatic report
  • STC Support
  • Elimination of STC operating flights
  • Coupled test in hangar or on flight line, eliminates:
    – Open sky requirement
    – GPS repeater
    – Weather problems
    – Interference with ATC operations
VIAVI ADS-B INTEGRITY Test Application
VIAVI ADS-B INTEGRITY Test Application


VIAVI DS-B INTEGRITY Test Application

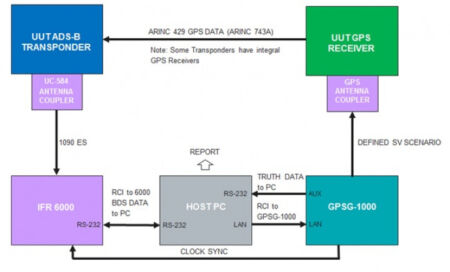

Viavia Test Application schema

Test Application Viavi

Downloads

VIAVI ADS B Integrity Application Brochure EN

VIAVI ADS B Integrity APP for RD Flyer EN

VIAVI ADS B Integrity APP for System Installations Datasheet EN
